Barco UDX-4K32 DLP Laser Projector, 31000 Lumens

The Barco UDX-4K32 features 4K UHD resolution and 31,000 lumens light output to ensure flawless shows with accurate colors at all times. The Constant Light Output (CLO) functionality also guarantees peace of mind by providing constant brightness and color over time. The UDX platform offers a wide color spectrum. Without compromising on brightness, the UDX color quality matches the renowned Xenon quality and outperforms the Rec. 709 color space.

Built for High-Brightness 4K Presentation

Designed as a 4K UHD 3-chip DLP digital projector (0.9″ DMD x3), the UDX-4K32 supports input resolutions from NTSC up to 4K (4,096 x 2,160) for modern media servers, broadcast feeds, and multi-format live production workflows. Choose the output mode that fits your content and venue, with brightness rated at 31,000 (WQ) / 30,000 (4K UHD) center lumens, and maintain consistent image quality with 90% brightness uniformity and a 2,000:1 contrast ratio.

Installation Flexibility and Multi-Projector Workflows

For demanding installs and touring rigs, the projector supports 360° orientation and uses a sealed DLP core for added protection in challenging environments. ScenergiX horizontal and vertical edge blending helps build seamless wide images across multiple projectors, while WARP (direct adjust OSD + toolset) supports geometric correction for curved or irregular surfaces. Optical lens shift (V: -100% to +130% / H: +/- 40% on zoom lenses, memorized) makes alignment faster when mounting constraints limit ideal placement.

Professional Connectivity and Control

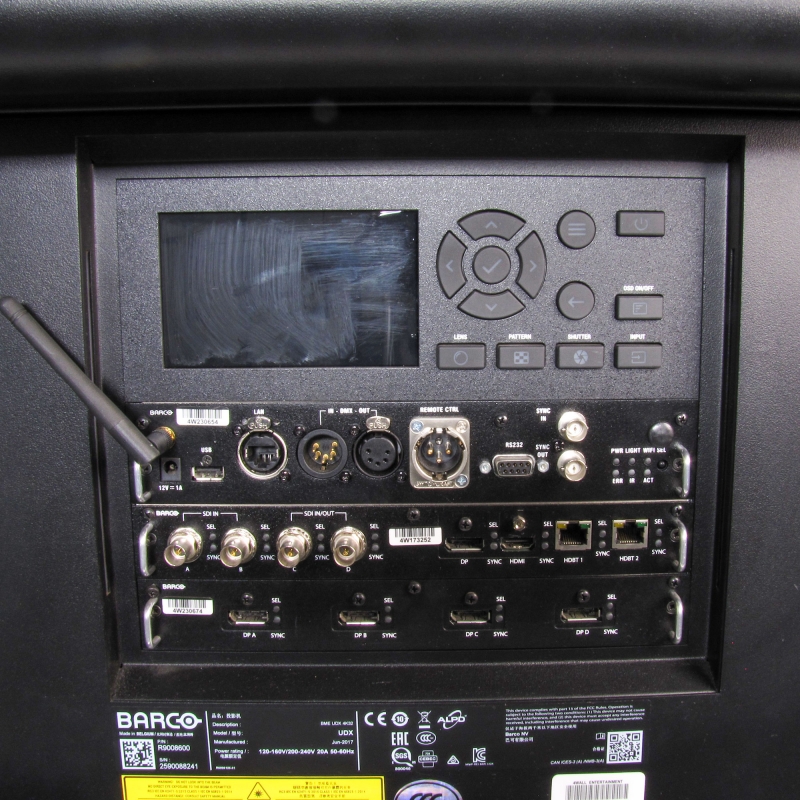

Integrate easily into professional signal chains with inputs including Single HDBaseT, HDMI 2.0 (HDCP 2.2), DP 1.2 (HDCP 1.3), and Quad SDI/HDSDI/dual, plus HDSDI/6G/BarcoLink. For show control and remote management, the UDX-4K32 includes DMX 512 support and an integrated web server. Picture-in-picture allows two sources simultaneously for monitoring, presentations, or live event switching.

Laser Phosphor Light Source

The laser phosphor light source with inorganic phosphor wheel is rated for +20,000 hours, helping reduce lamp-related maintenance and supporting long-term, predictable operation. Digital optical dowser functionality provides convenient output control without manual intervention. Color correction (P7) helps fine-tune color performance to match your content and environment.

Lens Options

The UDX-4K32 is compatible with TLD+ lenses including 0.37, 0.65-0.85, 0.8-1.16:1, 1.25-1.6:1, 1.5-2.0:1, 2.0-2.8:1, 2.8-4.5:1, 4.5-7.5:1, and 7.5-11.5:1, allowing you to tailor throw distance and installation geometry to your venue.

Physical Specs

Dimensions (WxLxH) are 660 x 830 x 350 mm (25.98 x 32.67 x 13.77 inches), and weight is 92 kg (202 lbs). Aspect ratio is 16:10.
