Meyer M1D Ultra-Compact Loudspeaker & Subwoofer Package

The Meyer M1D Ultra-Compact Loudspeaker & Subwoofer Package is a self-powered curvilinear array system built for sound reinforcement in small to mid-sized venues where you need high output, controlled coverage, and a low-visual-impact rig. The M1D’s compact enclosure makes it easier to deploy vertical arrays and shape coverage with cabinet count and splay, while maintaining consistent horizontal dispersion for audiences spread across a room.

This package includes:

• (27) M1D Loudspeakers
• (6) M1D-Sub Subwoofers
• (74) Link Plate
• (2) Flying Hardware
• (12) Mounting U-Bracket
• (3) 8-Unit Road Cases for Loudspeakers
• (2) Dual Road Cases for Loudspeakers
• (6) Road Cases for Subwoofers
• (1) Spare Road Case for Subwoofers

These units may show signs of heavy wear but are in good working condition.

M1D Ultra-Compact Curvilinear Array Performance

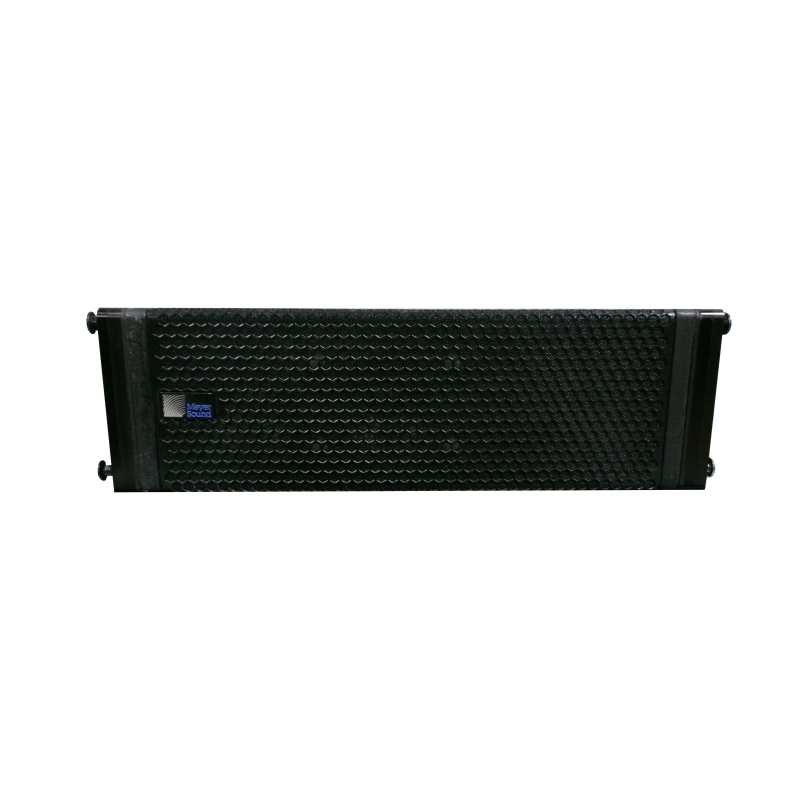

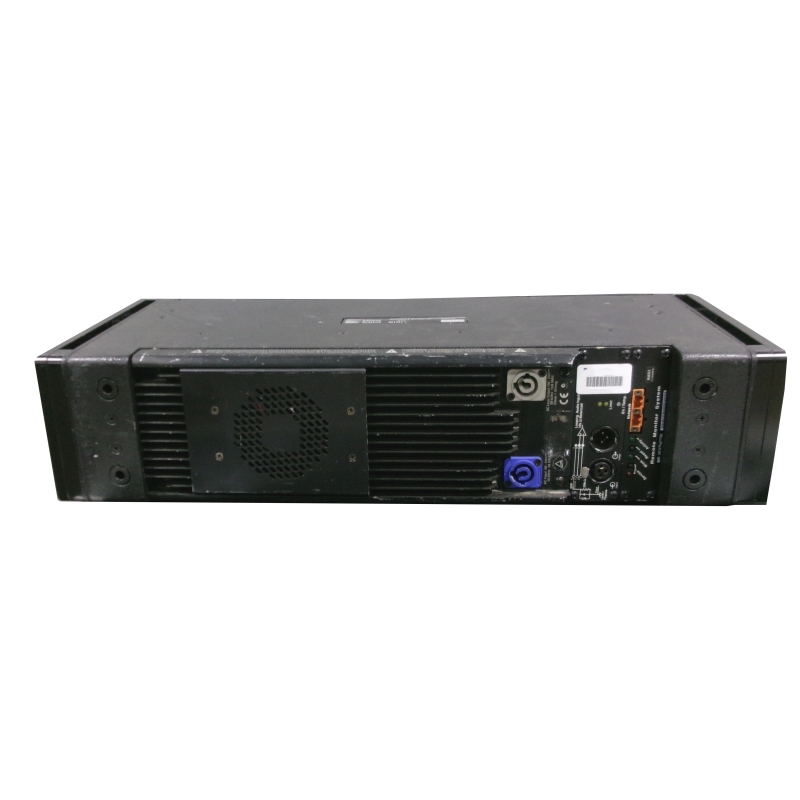

The Meyer Sound M1D ultra-compact curvilinear array loudspeaker brings the singular advantages of self-powered line arrays to sound reinforcement applications in small and mid-sized venues. The exceptionally compact enclosure enables sound designers to achieve high output, precise pattern control with very low distortion from a lightweight and unobtrusive system. The M1D provides a substantial peak SPL of 125 dB at 1 meter with an operating frequency range of 60 Hz – 18 kHz and is designed specifically for implementing vertical curvilinear arrays of up to 16 cabinets having 0- to 8-degree splay between adjacent units. This design affords the flexibility to tailor vertical coverage by varying the number and splay of cabinets in the array while maintaining a consistent 100° horizontal coverage.

M1D-Sub Low-Frequency Extension and Headroom

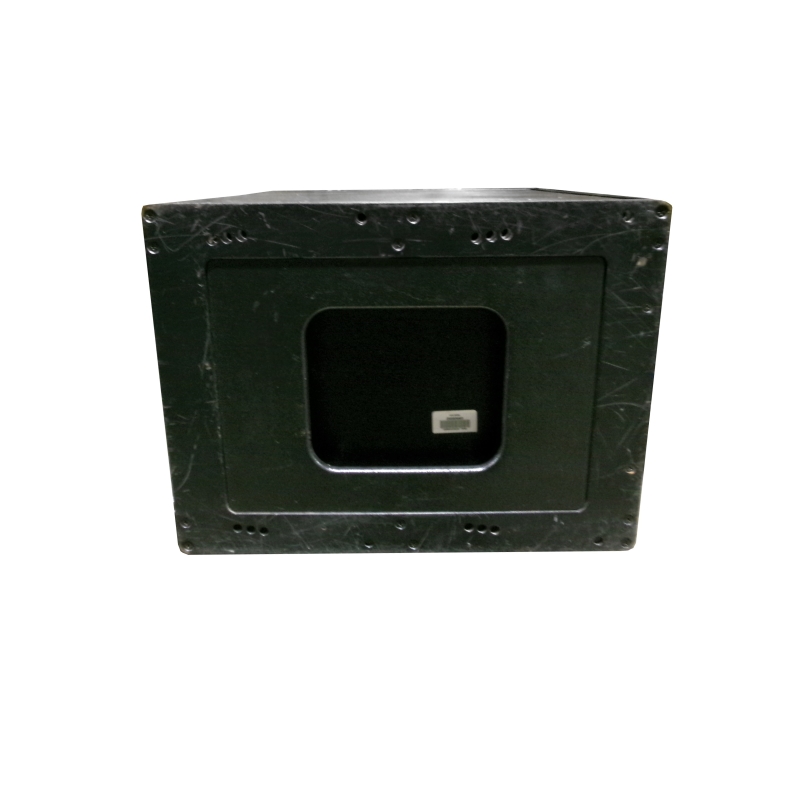

The M1D-Sub ultra-compact subwoofer complements the M1D ultra-compact curvilinear array loudspeaker by extending bandwidth with its operating frequency range of 32 Hz to 180 Hz and substantially increasing overall system headroom. Because it produces a prodigious peak SPL of 130 dB at 1 meter from a compact cabinet, the M1D-Sub allows system designers to minimize array size while maximizing system response. Although it is intended primarily as a companion subwoofer to the M1D, it is perfectly suited to general use where powerful low frequency augmentation is desired.

Practical Design Benefits

• Extremely compact and lightweight for easier rigging and deployment in tighter venues.
• Very flat response for exceptional accuracy and imaging (loudspeaker).
• Constant-Q horn assures uniform coverage (loudspeaker), helping keep tonal balance more consistent across seating areas.
• Unique crossover design eliminates mid-range combing (loudspeaker) for clearer vocals and intelligibility.
• Seamless integration with other M Series models (loudspeaker).
• High power-to-size ratio for maximum installation flexibility (sub).
• Exceptional fidelity and peak capability assure clean, high-impact lows (sub).
• Seamless integration with M1D loudspeakers (sub).
